Алмазы в оправах

Тип 1

Тип 2

Тип 3

Тип 4

Основное назначение: правка шлифовальных кругов фасонного (α=90°) и прямого (α=120°) профиля.

Обозначение при α		Основные размеры, мм			Масса алмаза, карат
90°	120°	D	d	L

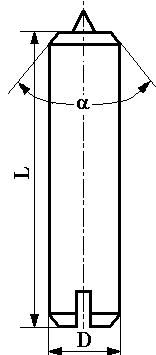

Тип 1 (цилиндрические)
3908–0101	3908–0102	6	–	25	0,02÷0,04
3908–0105	3908–0106				0,05÷0,10
3908–0111	3908–0112			50
3908–0113	3908–0114			25	0,11÷0,20
3908–0117	3908–0118			50
3908–0121	3908–0122	7		8,5	0,31÷0,40
3908–0123	3908–0124			18
3908–0125	3908–0126	8		25	0,21÷0,30
3908–0131	3908–0132			50
3908–0133	3908–0134			25	0,31÷0,40
3908–0137	3908–0138			50
3908–0141	3908–0142			25	0,41÷0,60
3908–0145	3908–0146			50
3908–0147	3908–0148			25	0,61÷0,85
3908–0153	3908–0154			50
3908–0155	3908–0156	10		50	0,21÷0,30
3908–0157	3908–0158				0,31÷0,40
3908–0161	3908–0162				0,41÷0,60
3908–0163	3908–0164				0,61÷0,85
3908–0165	3908–0166				0,86÷1,10
3908–0167	3908–0168				1,11÷1,35
3908–0171	3908–0172				1,36÷1,60
3908–0173	3908–0174				1,61÷2,10
3908–0175	3908–0176	12			0,21÷0,30
3908–0177	3908–0178			75	0,31÷0,40
3908–0181	3908–0182				0,41÷0,60
3908–0183	3908–0184				0,61÷0,85
3908–0185	3908–0186				0,86÷1,10
3908–0187	3908–0188				1,11÷1,35
3908–0191	3908–0192				1,36÷1,60
3908–0193	3908–0194				1,61÷2,10

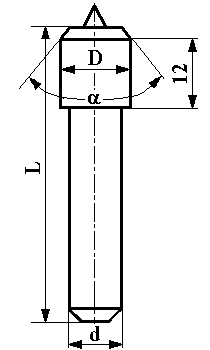

Тип 2 (цилиндрические с головкой)
3908–0195	3908–0196	10	6	32	0,21÷0,30
3908–0197	3908–0198				0,31÷0,40
3908–0201	3908–0202				0,41÷0,60
3908–0203	3908–0204			50	0,61÷0,85
3908–0205	3908–0206				0,86÷1,10
3908–0207	3908–0208				1,11÷1,35
3908–0211	3908–0212				1,36÷1,60
3908–0213	3908–0214				1,61÷2,10

Обозначение при α		Основные размеры, мм			Масса алмаза, карат
90°	120°	D	d	L
Тип 2 (цилиндрические с головкой)
3908–0215	3908–0116	12	8	32	0,21÷0,30
3908–0217	3908–0218			50
3908–0221	3908–0222			32	0,31÷0,40
3908–0223	3908–0224			50
3908–0225	3908–0226			32	0,41÷0,60
3908–0227	3908–0228			50
3908–0231	3908–0232			32	0,61÷0,85
3908–0233	3908–0234			50
3908–0235	3908–0236			32	0,86÷1,10
3908–0237	3908–0238			50
3908–0241	3908–0242			32	1,11÷1,35
3908–0243	3908–0244			50
3908–0245	3908–0246			32	1,36÷1,60
3908–0247	3908–0248			50
3908–0251	3908–0252			32	1,61÷2,10
3908–0253	3908–0254			50

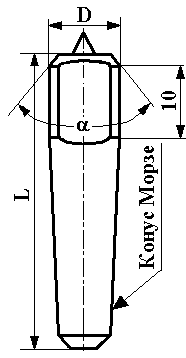

Тип 3 (конические)
3908–0255	3908–0256	10,3	–	28	0,31÷0,40
3908–0257	3908–0258				0,41÷0,60
3908–0261	3908–0262				0,61÷0,85
3908–0263	3908–0264				0,86÷1,10
3908–0265	3908–0266				1,11÷1,35
3908–0267	3908–0268				1,36÷1,60
3908–0271	3908–0272	12,2		32	0,31÷0,40
3908–0273	3908–0274				0,41÷0,60
3908–0275	3908–0276				0,61÷0,85
3908–0277	3908–0278				0,86÷1,10
3908–0281	3908–0282				1,11÷1,35
3908–0283	3908–0284				1,36÷1,60

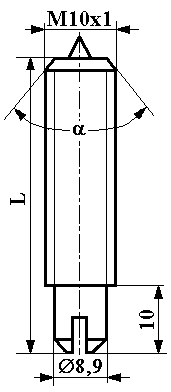

Тип 4 (резьбовые)
3908–0285	3908–0286	–	–	50	0,11÷0,20
3908–0287	3908–0288				0,21÷0,30
3908–0291	3908–0292				0,31÷0,40
3908–0293	3908–0294				0,41÷0,60
3908–0295	3908–0296			36	0,61÷0,85
3908–0297	3908–0298			50
3908–0301	3908–0302			36	0,86÷1,10
3908–0303	3908–0304			50
3908–0305	3908–0306				1,11÷1,35
3908–0307	3908–0308				1,36÷1,60
